Pressure Vessels & Reactors (Including “U” / “U2” Stamped Vessels)

This will include all types of Pressure Vessels & Reactors including those with ASME “U / U2” Stamp Certification, in Horizontal / vertical Design.


Our expertise will includes

  • Plasma Cutting Machines
  • In-house rolling capability up to 135 mm
  • Have 5 nos. of rolling Machines (135 mm, 70mm, 55mm, 20mm, 10mm)
  • Huge quantity of welding Machines, rotators & Idlers
  • In-house Radiography bunker
  • In-house PWHT Ovens
  • Water Front Yard available for fabrication & Assembly of Very large equipment’s


Scope shall include

  • Design (ASME SEC VIII Div 1 & 2, PD5500 etc) & Detailed Engineering
  • Preparation of Fabrication Drawings
  • Procurement of Materials
  • Rolling of Shells and Forming of Dish Ends,
  • Welding as per ASME Sec IX using qualified welders
  • Complete Fabrication at our works
  • Post Weld heat treatment (If required)
  • Hydro test, All other Non Destructive Tests,
  • Pickling & Passivation, Painting as per project Specification
  • Fit up of all internals (if required)
  • Complete QA/QC Documentation and as-built drawings
  • ASME U or U2 Stamping, CE Marking, GOST R Certification, ARH Documentation etc as required


77 Pressure Vessels for Takreer Refinery

77 Pressure Vessels for Takreer Refinery

SABIC/Kemya Project - 56 Pressure Vessels

SABIC/Kemya Project - 56 Pressure Vessels

ADMA OPCO - (75+6) mm SS 316L Clad Glycol Contactor

ADGAS - (70+3) mm SS 316L Clad Glycol Contactor

BP Rumailah - 3 Phase Separator

DE-Aerators for Etileno Braskem in Mexico

Al Gubrah IWPP - 26 Dual Media Filters

El Concorde Surge Vessels

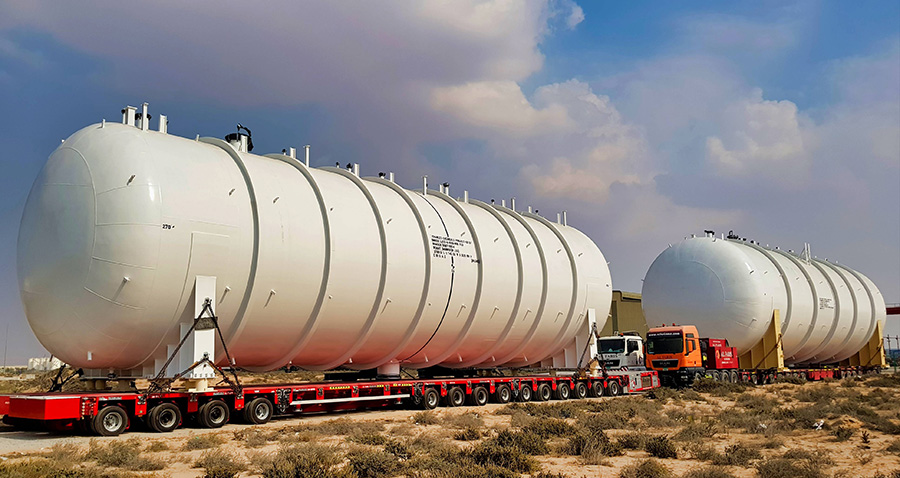

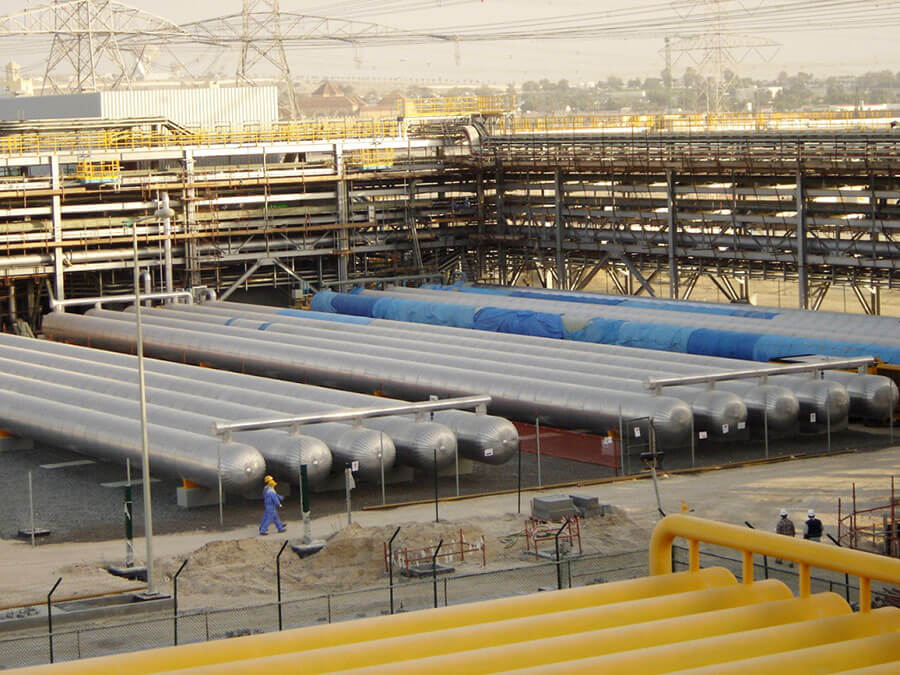

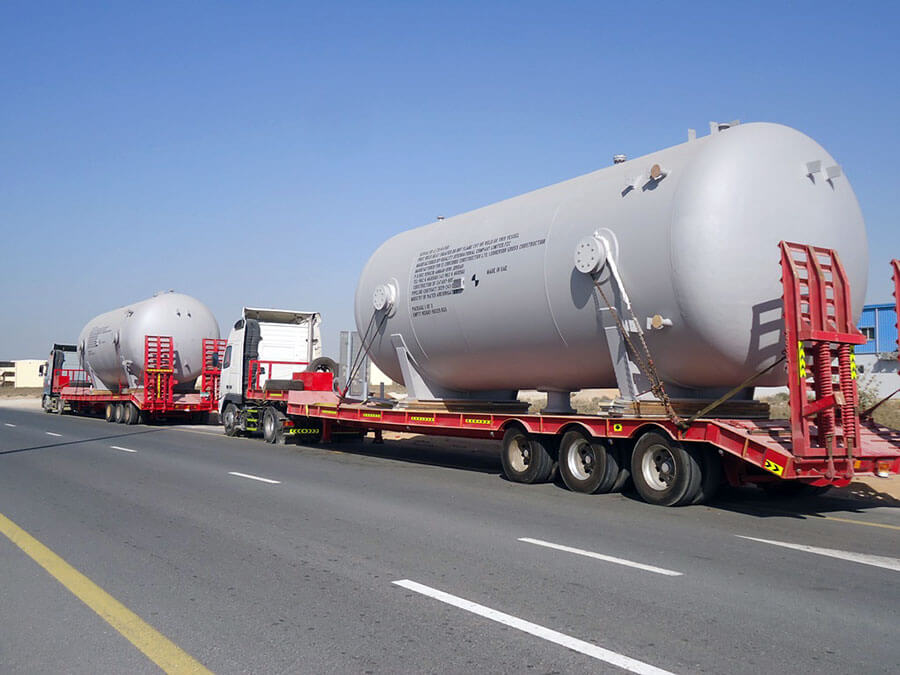

Power DEWA Gas Bullets - 60 Mtrs Long

HP Gas Scrubbers

Instrument Air Receiver - Yemen

45 Nos. of HP Vessel - Chevron Gorgon Project

KO Drum

Total Kharyaga Vessel with Heat Tracing

Mukheizna Phase I- Occidental Petroleum

Mukheizna Phase II Occidental Petroleum

Duplex Lime Stone Filters

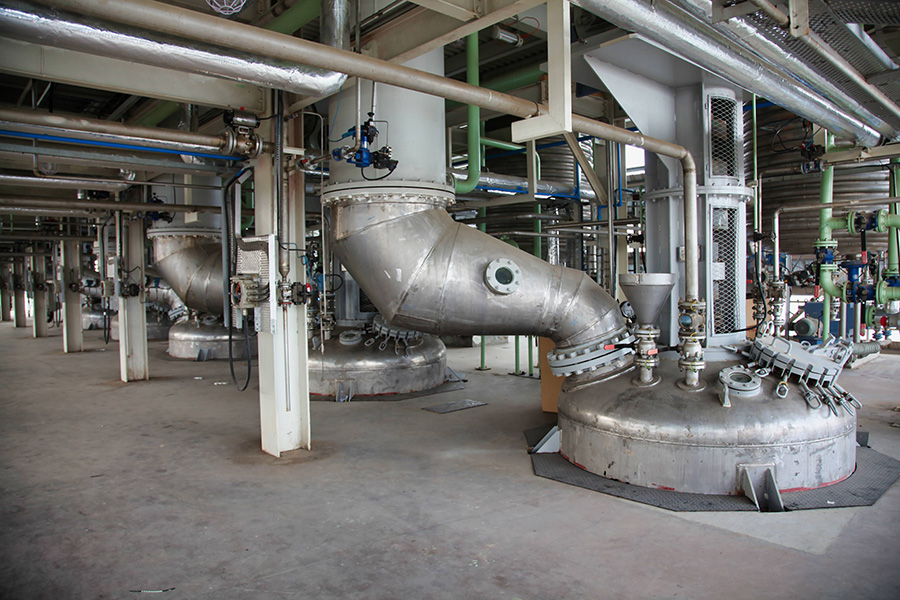

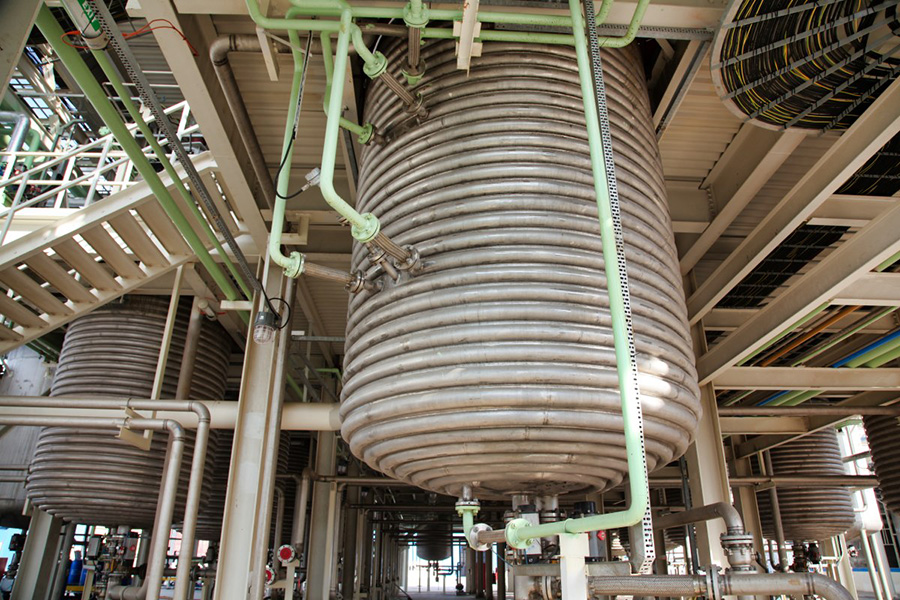

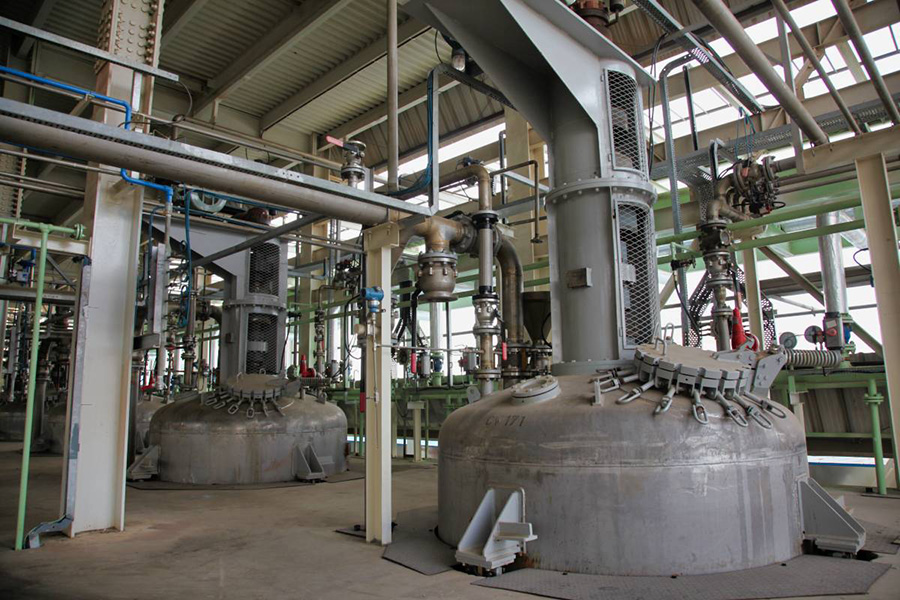

Chemical - CPI Visen Polymers - Reactors

Duplex Mist Eliminator - Occidental Petroleum

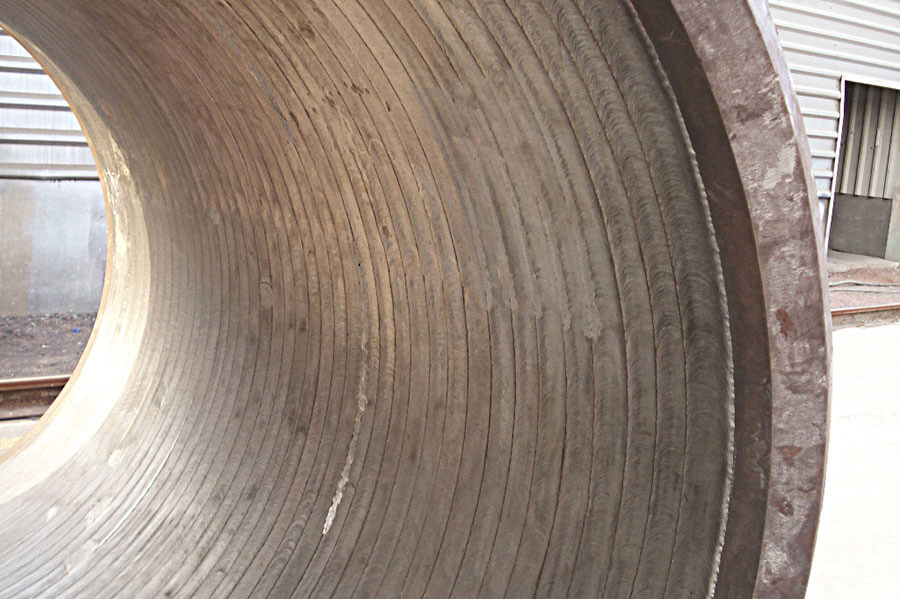

Gorgon Project - Incoloy 625 Cladding

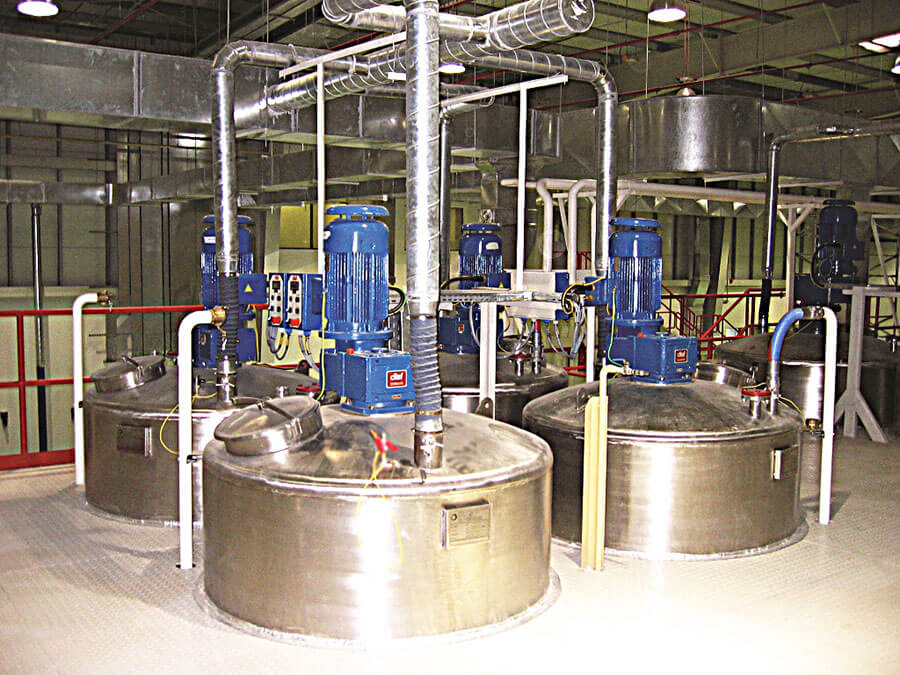

SS Mixing Vessels
